Caso di studio: Kseng Solar consegna un altro inseguitore solare da 1,4 MW in Italia

Jan 08, 2026

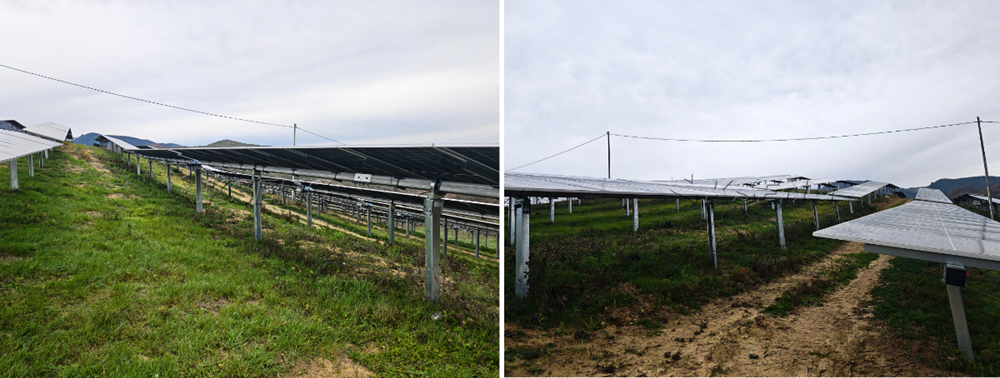

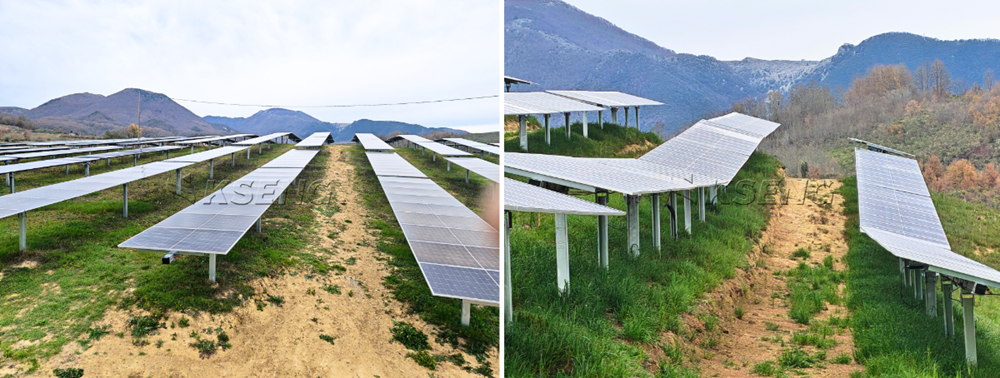

Un progetto di inseguimento solare da 1,4 MW in Italia, alimentato da Kseng Solar ’s KST-1P Solar Tracker, is now running smoothly.



Notably, the project site features extremely challenging terrain, with a 10° slope in both the north-south and east-west directions. Faced with this difficult topography, Kseng Solar ’s experienced engineer team designed a custom short-row layout, which not only simplified installation but also maximized energy yield, earning high praise from the client.


**Project information**
- Location: Italy
- Size of system: 1.2MW
- Design wind speed: 28 m/s
- Design snow: 1.2kN/m²
- Design standard: Eurocode 1991-4
- Field temperature: -15℃-40℃
- Foundation: Ramming Pile
- Material: Zn-Al-Mg Coated Steel & Hot-Dip Galvanizing Carbon Steel
- Minimum ground clearance: 1300mm
- Module orientation: 1P Portrait
- PV-Modules quantity per rows: 18PCS
- Control unit power supply: Self-powered

Special Features of Kseng Solar ’s KST-1P Solar Tracker
- Adapt to various terrains allowing a north-south slope up to 20%
- AI algorithm to maximize power generation
- Fully fit for 210mm modules
- Easy installation & maintenance

Find more about the product: https://www.xmkseng.com/kst-1p_c17
